Description
Size – XL
Colour – Grey

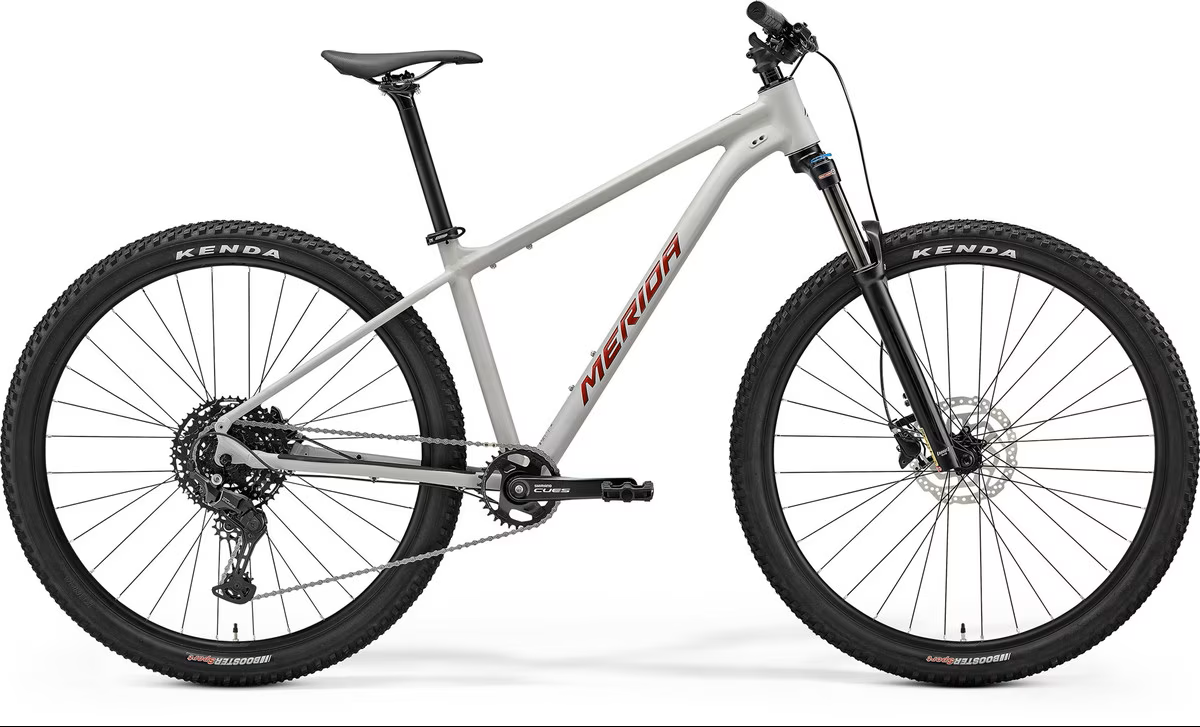

The Merida Big.Nine 200 Cross-Country Bike in Matte Grey Glitter/Cherry is a robust, versatile mountain bike for beginners and seasoned riders alike. Its lightweight alloy frame and 120mm air front suspension deliver a smooth, controlled ride over rough terrain. With reliable Shimano hydraulic disc brakes, this bike delivers confident stopping power in all conditions. The 29″ tubeless-ready wheels offer excellent traction and stability, while the single chainset simplifies gear changes, making it an ideal choice for cross-country adventures.
Product Features
Frame Material
Alloy
Frame Style
Crossbar
Colour
Grey
Wheel Size
29″
Brake Type
Hydraulic Disc Brake
Gears
1 x 10
Front Travel
120mm
Build
Frame
BIG.NINE TFS V; MAT aluminum; 29 WHS; 135×9 AST; BSA BBR; Smooth welding
Fork
SR Suntour XCR32 Boost LOR; Air; 120 STR; 29×2.4″ max. WHS; Lockout; 46mm fork offset
Handlebars
MERIDA EXPERT CC; MAT aluminium; 10 RHB; S: 720 WHB; M/L/: 740 WHB; XL/XXL: 760 WHB
Headset
FSA NO.55R/57SC/57B
Grips
MERIDA COMP TR
Stem
MERIDA COMP CC; MAT aluminium; 31.8 DSH; 7 ASD; S: 50mm, M-L:60 mm, XL-XXL: 70 mm
Bottom Bracket
Shimano BB-UN101 LL123
Pedals
VP VPE-891
Saddle
MERIDA COMP SL; V-mount
Seat Post
MERIDA COMP CC; MAT aluminium; 30.9 DSP; 0 SSB
Seat Clamp
MERIDA COMP QR
Wheels
Wheel Size
29″
Rims
MERIDA COMP CC II; 25 IWR; MAT aluminium; tubeless ready
Hubs
F: Shimano TC500-B; 110×15 WHF; 32 SPH; Centerlock | R: Shimano QC300-HM; 135×9 WHR; 32 SPH; Centerlock
Tyres
F: Kenda Booster; 29×2.4; wired | R: Kenda Booster; 29×2.4; wired
Spokes
Black stainless
Groupset
Crankset
Shimano CUES U4000; 32 ATC; 170mm for all sizes
Chain
KMC xGlide
Brakes
F: Shimano MT200; 2 piston | R: Shimano MT200; 2 piston
Front Rotor
Shimano RT10; 180mm
Rear Rotor
Shimano RT10; 160mm
Shifters
R: Shimano CUES U6000
Rear Derailleur
Shimano CUES U6000; GS
Cassette
10 Speed
Cassette Model
Shimano LG300; 11-48 ATC; 10 GER
