Description
Size – Lge
Colour – Metallic Black/Red

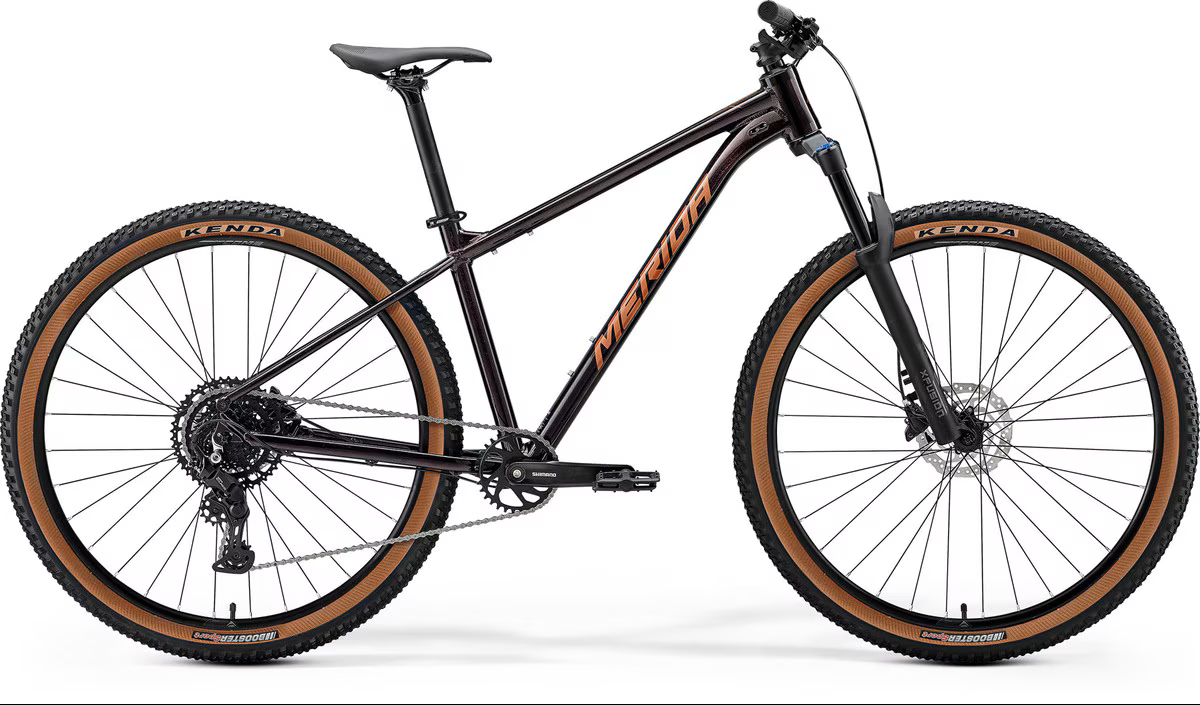

The Merida Big.Nine 40 Hardtail Mountain Bike in Metallic Black/Red is designed for riders seeking a reliable and versatile mountain biking experience. Its lightweight alloy frame and 120mm X-Fusion front suspension provide excellent control and comfort on various terrains. Equipped with Shimano hydraulic disc brakes, this bike ensures powerful and consistent stopping power. The 29-inch wheels offer a smooth ride over obstacles, while the single chainset simplifies maintenance. Ideal for both beginners and seasoned riders, the Big.Nine 40 combines performance and style for an enjoyable outdoor adventure.
| SEASON | 2026 |
|---|---|
| BOTTOM BRACKET | Shimano UN101 LL123 |
| BRAKES | F: Shimano MT200 | R: Shimano MT200 |
| CASSETTE | SunRace U9 CS-U980 9AZ; 11-46 ATC; 9 GER |
| CHAIN | KMC xGlide |
| COLOUR | METALLIC BLACK(RED) |
| CRANKSET | Shimano Cues UT400-1; 32 ATC; MAT Aluminium ; 165mm on all sizes |
| DERAILLEUR REAR | Shimano Cues U4000; GS |
| FORK | X-Fusion Migo 32 Air; 120 STR; lockout; max. 27.5×2,4 WHS |
| FRAME | BIG.SEVEN TFS V; MAT aluminum; 29 WHS; 135×9 AST; BSA BBR; Smooth welding |
| GRIP | MERIDA COMP TR |
| HANDLEBAR | MERIDA CC; MAT aluminium; 15 RHB; XXS/XS: 700WHB; S: 720 WHB |
| HANDLEBAR STEM | MERIDA COMP CC; MAT aluminium; 31.8 DSH; 7 ASD; 50mm |
| HEADSET | FSA NO.55R/57SC/57B |
| HUBS | F: Shimano TX505; 100×9 WHF; 32 SPH; Centerlock | R: Shimano TX505; 135×9 WHR; 32 SPH; Centerlock |
| PEDALS | VP VPE 536 |
| RIM | MERIDA COMP CC; 20 IWR; MAT aluminium |
| ROTOR FRONT | Shimano RT10; 160 mm |
| ROTOR REAR | Shimano RT10; 160 mm |
| SADDLE | MERIDA COMP SL |
| SEAT CLAMP | MERIDA COMP QR |
| SEAT POST | MERIDA COMP CC; MAT aluminium; 30.9 DSP; 0 SSB |
| SHIFTERS | F: | R: Shimano Cues U4000 |
| SPOKES | Black steel |
| TYRES | F: Kenda Booster; 27.5×2.4 2nd color option: Booster 27.5×2.4 tanwall | R: Kenda Booster; 27.5×2.4 2nd color option: Booster 27.5×2.4 tanwall |
