Description
Colour – Matte Mustard
TT – 21″

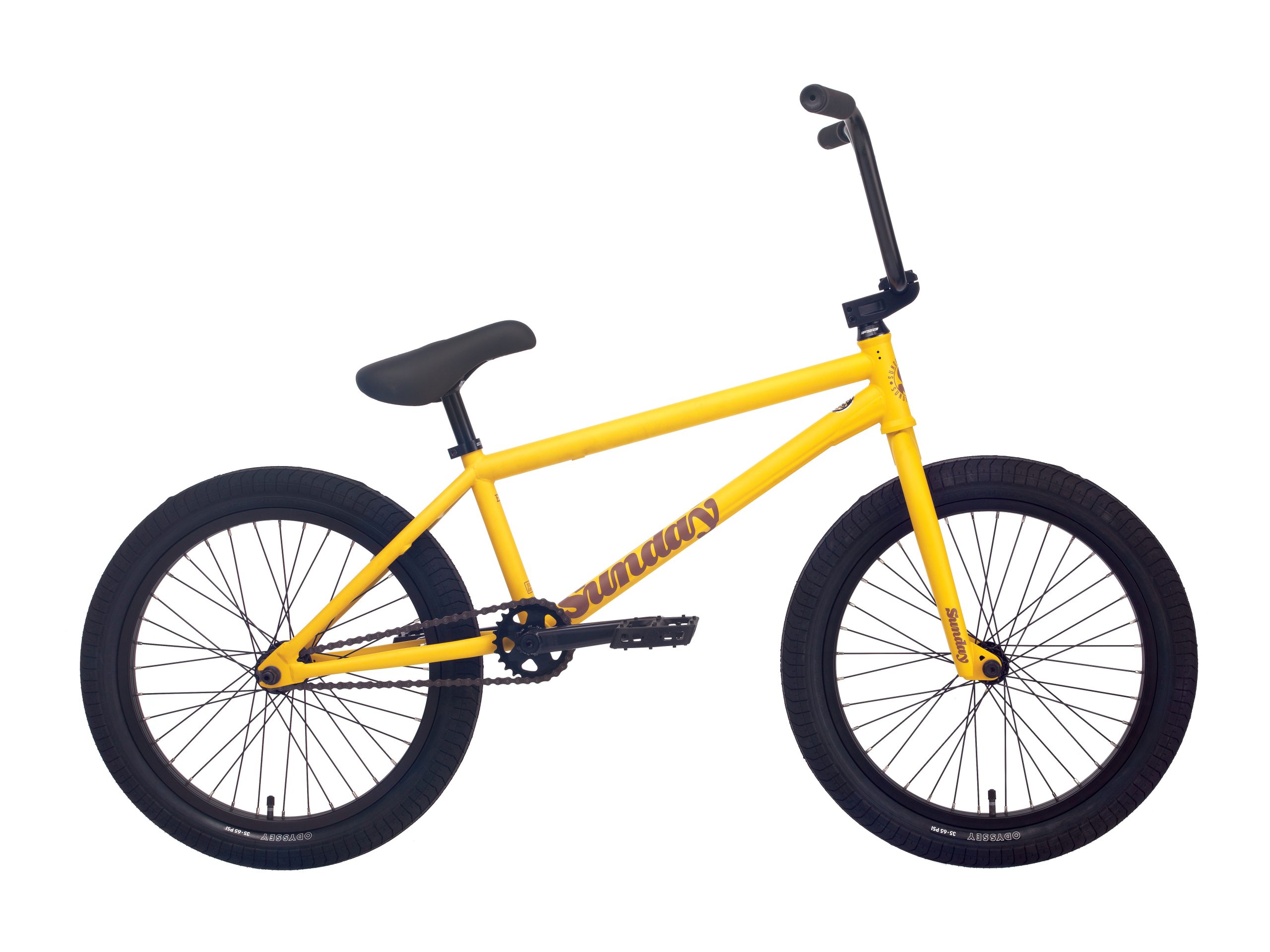

With a 100% chromoly frame, fork, and bars, the 2022 EX is a bike that is difficult to match.
Julian Arteaga’s signature model pushes the envelope with a tough, pro-level, Odyssey/Sunday parts package and frame design upgrades like the EX’s removable braking hardware mean business.
Frame: 21″ top tube, 100% chromoly frame with wave downtube, removable brake hardware
Fork: Sunday EX, 20″, 100% chromoly fork w/ 2-piece steerer tube and welded pre-load, 25mm offset
Handlebar: Sunday, 100% chromoly, 2-piece
Stem: Sunday Freeze front load, 48mm
Headset: FSA integrated conical, 1-1/8″
Alloy Cap: Sunday M16, aluminum
Brake Lever: Odyssey Springfield
Brakes: Odyssey Springfield U-brake
Brake Cable: Odyssey Quik Slic
Grips: Odyssey Broc Raiford
Seat: Sunday Badge, Pivotal
Seat post: Sunday Pivotal
Seat Clamp: Sunday
Sprocket: Sunday Sabertooth v2, 25T, 6061 aluminum
Cranks: Sunday Saker, 165mm
BB Parts: Sealed, Mid, 19mm
Pedals: Odyssey Twisted PC Pro
Rims: Sunday Lightning, 20″, 36H
Front Hub: Sunday, 36H, low-flange, sealed , 3/8″ female axle
Rear Hub: Odyssey C5 Cassette Hub, 36H, 14mm male axle, 9T Driver, non-drive side plastic guard
Spokes: 14g steel, black
Tires: Odyssey Path Pro OEM, 20 x 2.4″ (F & R)
Chain: KMC Z1 wide
Approx. Weight: 25.75lbs (with brakes)
Frame Geometry
Top Tube Length: 21″
Head Tube Angle: 75°
Seat Tube Angle: 71°
Chainstay Length: 13.2-13.5”
Bottom Bracket Height: 11.5″
Standover: 9″
Handlebar Geometry
Rise: 9″
Width: 28.5″
Backsweep: 12°
Upsweep: 4°
