Description
Colour – Metalic Gunmetal
Size – Lge

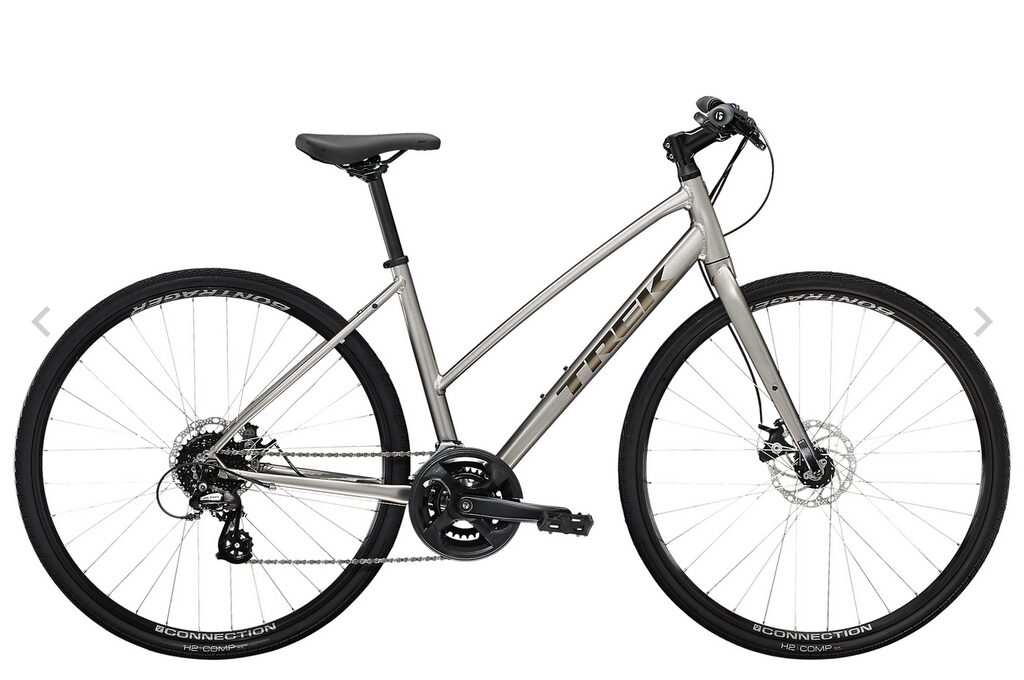

FX 1 Stagger Disc is a cool and versatile hybrid bike at a great value. The lightweight aluminium step-through frame makes getting on and off a breeze, and it’s built with reliable and sturdy parts, like strong wheels and disc brakes that stop in any weather. It’s perfectly suited to a variety of uses, from casual riding to exercise and commutes.
- Frame
-
Alpha Gold Aluminium, stagger top tube, rack and mudguard mounts, DuoTrap S-compatible, cantilever-brake mount, 135×5 mm QR
- Fork
-
FX Steel, threadless steel steerer, rack mounts, cantilever-brake mount, 405 mm axle-to-crown, 5×100 mm QR
- Hub front
-
Formula FM21 alloy, 100×5 mm
- Skewer front
- Hub rear
-
Formula FM31 alloy, 135×5 mm
- Skewer rear
- Rim
-
Bontrager Connection, alloy, double-wall, 32-hole, Schrader valve
- Tyre
-
Bontrager H2, wire bead, 30 tpi, 700×35 mm
- *Shifter
-
Size: S, M, L
Shimano Altus EF500, 7-speedSize: S, M, L
Shimano Altus EF500, 3-speed - Front derailleur
-
Shimano Tourney TY510, 34.9 mm clamp, top swing, dual pull
- Rear derailleur
-
Shimano Altus M310
- Crank
-
Forged alloy, 48/38/28, chain guard, 170 mm length
- Bottom bracket
-
VP BC73, 68 mm, threaded
- Cassette
-
14-34t, 7-speed freewheel
- Chain
-
KMC Z7
- Pedal
-
Wellgo nylon platform
- Saddle
- Seatpost
-
Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length
- Handlebar
-
Bontrager Riser, steel, 25.4 mm, 30 mm rise, 600 mm width
- Grips
-
Bontrager Satellite
- *Stem
- Head set
-
1 1/8″ steel threadless
- Brake
-
Tektro alloy linear-pull
- Weight
- M – 12.33 kg / 27.19 lbs
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
