Description

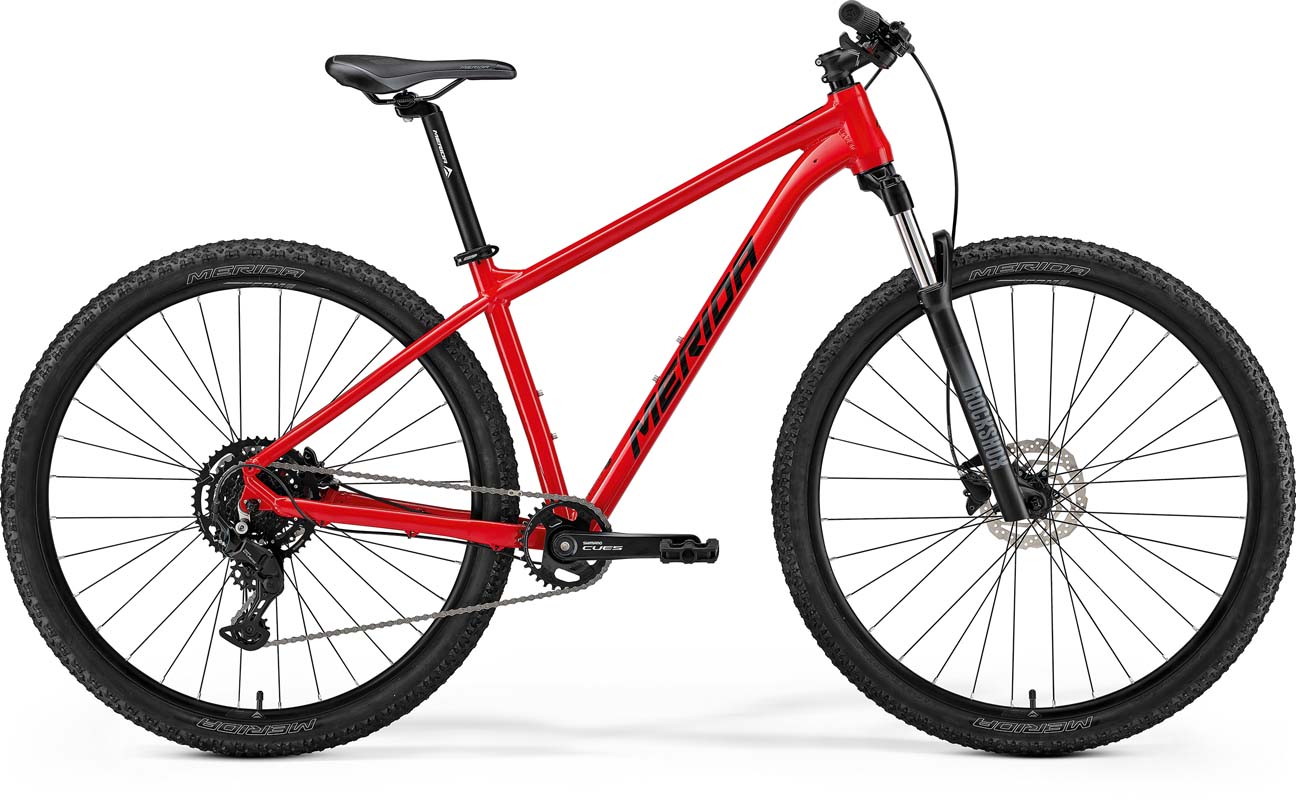

Merida BIG.NINE 80
Size – Lge
Colour – Red
Dependable do-it-all hardtail with a double-butted aluminium frame, 100 mm RockShox fork and 29″ wheels, plus quality Shimano drivetrain and hydraulic brakes for all-weather stopping power.
Fork: Rock Shox Judy TK | * Coil * 100mm suspension travel Lockout * 46mm fork offset * 29×2.25″ max. wheelsize
Stem: MERIDA CC | * material: aluminium * 31.8mm diameter * 6ﾰ stem angle * 70 mm-S, 80 mm-M, 90 mm-L, 100 mm-XL, 110 mm-XXL
Tube: 29*2.2 A.V
Chain / Belt: KMC xGlide
Crank: Shimano CUES U4000 | * 32 teeth * MAT Aluminium * 170 mm-S, 175 mm-M up
Frame: BIG.NINE TFS IV | * material: aluminium * 29×2.25″ max. wheelsize * 135x9mm axle standard * BSA bottom bracket standard
Grips: MERIDA EC
Saddle: MERIDA Sport comfort
Spokes: Black steel
Wheels: MERIDA CC | * 17mm inner width * material: aluminium
Headset: MERIDA M2345
Cassette: Shimano CS-LG300-9 | * 11-46 teeth * 9 speed
Rear Hub: Shimano FH-TX505 | * 135x9mm width rear hub * 32 spoke holes * Centerlock
Shifters: Shimano CUES U4000-9R
Front Hub: Shimano HB-TX505 | * 100x9mm width front hub * 32 spoke holes * Centerlock
Handlebar: MERIDA CC | * material: aluminium * 690mm width * 15mm rise
Rear Tire: MERIDA K1080 | * 29×2.2″ * wire
Seat Post: MERIDA CC | * 30.9mm diameter * 15mm setback * material: aluminium
Front Tire: MERIDA K1080 | * 29×2.2″ * wire
Rear Break: Shimano MT200 | * hydraulic brake * 2 piston
Rear Rotor: Shimano RT10 | * 160 mm
Front Break: Shimano MT200 | * hydraulic brake * 2 piston
Front Rotor: Shimano RT10 | * 160 mm
Bottom Bracket: Shimano BB-UN101 73-123
Rear Derailleur: Shimano CUES U4000-9 | * GS
Seat Post Clamp: MERIDA COMP QR
Frame material: Aluminium
Pedals: VP VPE-891
Fork type: Federgabel
Front suspension: 100mm
Fork Manufacturer: RockShox
